NAS GROSSE ILE

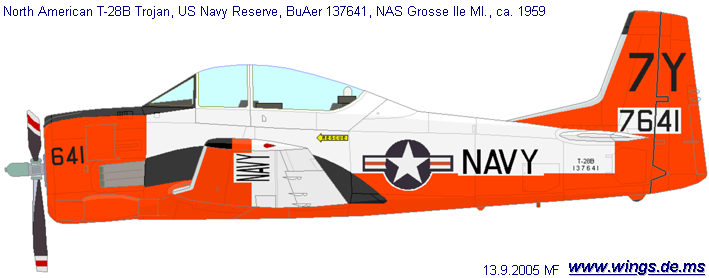

North American T-28B Trojan


This photograph may not be used or published, neither commercially nor for other purposes, in any form, including but not restricting to the Internet, magazines and books, without the photographer's permission. For all inquiries please contact the photographer by e-mail or by other means.

The T-28 was originally designed to replace the T-6 Texan trainer for all branches of the military, the Trojan was the heaviest and most powerful piston-engine trainer ever projected for primary training.. It was first flown on September 24, 1949, and entered production in 1950.  It was also the first U.S. military trainer to have a tricycle gear. The Navy got their T-28B in 1952, differing in having a more powerful engine to replace the 800hp Wright R-1300, and a two-part canopy, plus structural modifications for duty aboard carriers. For counter-insurgency combat, Trojan was again revised, this time as the single-seat T-28D, with armament and rocket-launchers. As a primary trainer, it was found to be too powerful for new students, and the services had to bring in the Beech T-34 for cadets to get flight instruction for 30 hours before stepping up into the Trojan. When production ended in 1957, a total of 1,948 of these three versions had been built. A few Navy T-28Bs eventually went into the Air Force inventory and a few others were turned over to the U.S. Army.

In 1962, the Air Force began a program to modify more than 200 T-28As as T-28D "Nomad" tactical fighter-bombers for counter-insurgency warfare in Vietnam. Equipped with the larger 1,425 hp. engines and many other changes, the T-28Ds eventually proved to be an effective close air support weapon against enemy ground forces. The South Vietnamese Air Force (VNAF) used a number of USAF-supplied T-28Bs in a similar role until the -Ds became available.

The U.S. Navy continued to use the Trojan on until 1987.

SPECIFICATIONS
Armament: Two .50 cal. guns, plus 1,800 lbs. of bombs or rockets, all carried externally
Cost: $142,000


Manufacturer Douglas
Designation T
Version -28B
Type trainer
Crew 2
Length 32 ft. 6 in.
Wingspan 40 ft. 7 in.
Height 12 ft. 7 in.
No. of Engines 1
Power plant Wright R-1820
Horsepower 1425
Max. Speed 346 Mph
Service Ceiling 37,000 ft.
Range 1,060 miles
