NAS GROSSE ILE

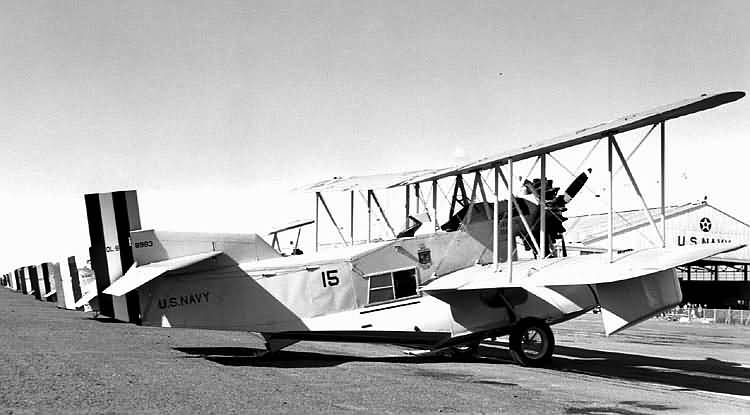

Loening OL-9

Description
Manufacturer: Loening
Designation: OL
Version: -9
Type: Observation & Communication
Specifications
Length: 34' 9" 10.59 M
Height: 12' 9" 3.89 M
Wingspan: 45' 0" 13.72 M
Gross Weight: 5125.00 lbs 2324.00 Kg
Propulsion
Powerplant: Pratt & Whitney R-1340C
Horsepower (each): 450
Performance
Max Speed: 122.00 Mph 196.00 Km/H 105.95 Kt
Ceiling: 14300.0 Ft 4358.40 M
According to Jane's Encyclopedia of Aviation 1993 Edition published by Crescent Books, the Loening OL-9 was built by Keystone, twenty-six being delivered to the US Navy. It was powered by a 317 kW (425hp) Pratt & Whitney R-1340-4 Wasp engine.
